DE150 PVC Drift Eliminator For Cooling Towers
جزئیات محصول:
| محل منبع: | جیانگسو ، چین |
| نام تجاری: | XL |
| گواهی: | SGS |
| شماره مدل: | XL-120-LJ |
پرداخت:
| مقدار حداقل تعداد سفارش: | 10 متر مربع |
|---|---|
| قیمت: | $20-30/square meters |
| جزئیات بسته بندی: | بسته بندی چوبی، کارتن، سفارشی |
| زمان تحویل: | 10 روز کاری |
| شرایط پرداخت: | Western Union، T/T، MoneyGram، D/P، D/A، L/C |
| قابلیت ارائه: | 1000 متر مربع / هر پرداخت |
|
اطلاعات تکمیلی |
|||
| مواد: | پی وی سی، پی پی، | نوع خنک کننده: | قطعات برج خنک کننده |
|---|---|---|---|
| گارانتی: | 1 سال | نام: | حذف کننده دریفت پی وی سی DE150 برای برج های خنک کننده |
| عمق: | 120 میلی متر | طول: | 1220/1830/2440 میلی متر / سفارشی |
| فاصله ورق: | 20 میلی متر | استفاده: | برج خنک کننده |
| MOQ: | 10 متر مربع | ضخامت: | 0.6 میلی متر |
| نام محصول: | حذف کننده دریفت | ||
توضیحات محصول

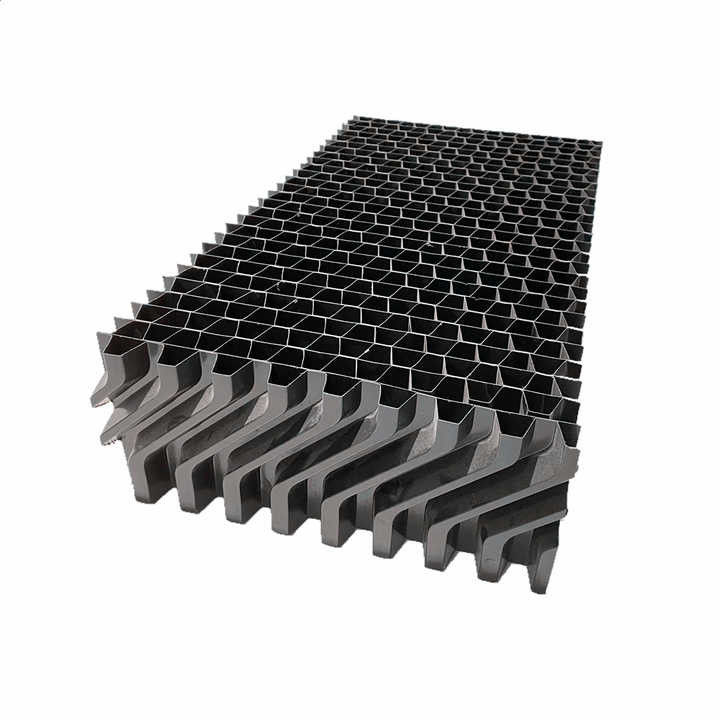

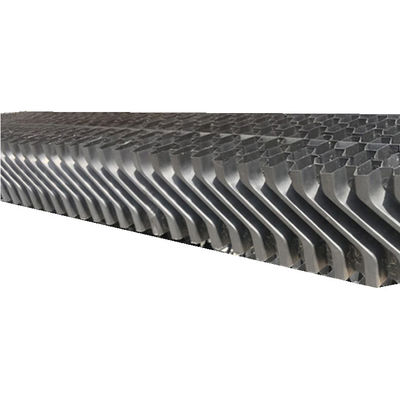

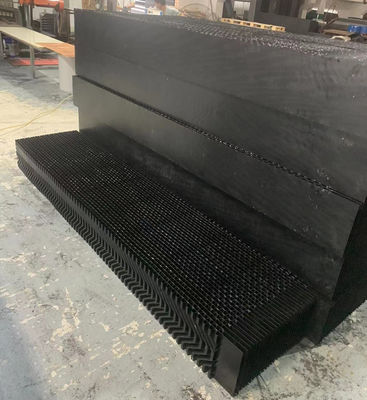

DE150 PVC Drift Eliminator For Cooling Towers
Description:
Drift Eliminators, made out of rigid PVC, are designed to remove entrained particles from air steam efficiently, with minimum pressure drop, thereby reducing the fan power requirement when the air passes through the Drift Eliminator. Water droplets are separated from the air drift at the three direction change points on the drift eliminator.For Cross flow tower applications, the almost vertical water conduits provided by the DE drift eliminator remove the water droplets out of the drift eliminator area and return them back into the tower and does not allow any re-entry.The special locking pin arrangement for DE facilitates quick and simple assembly at site.
Specifications:
| Tech Date | |
| Sheet Width(mm) | 150/120mm |
| Sheet Length | 1220/1830/2440mm/customized |
| Thickness | 0.6-1.2mm/customized |
| Sheet Spacing | 20mm |
| Color | black |
Related Blade Drift Eliminator
Drift eliminator advantages:
1. Maximum drift capture through efficient design
2. Light weight
3. Easy to handle, lift and remove for inspection and service of water distribution system and heat transfer surface (fill and coil)
4. Nested modules to guarantee watertight seam
5. Corrosion free
6. Perfect fit: model specific size kits
PACKING AND DELIVERY
Q: Are you trading company or manufacturer ?
A: We are manufacturer with our own factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge. And the freight cost will on the buyer's side.
Q: What is your terms of payment ?
A: Payment<=USD1000, 100% in advance. Payment>=USD1000, 30% T/T in advance ,balance before shipment.
