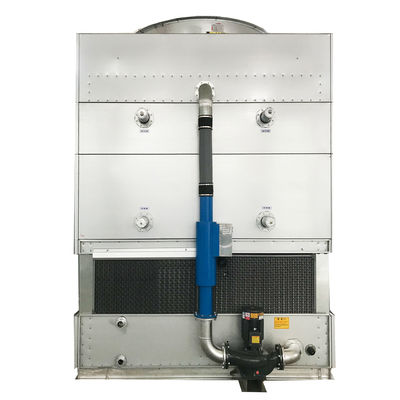

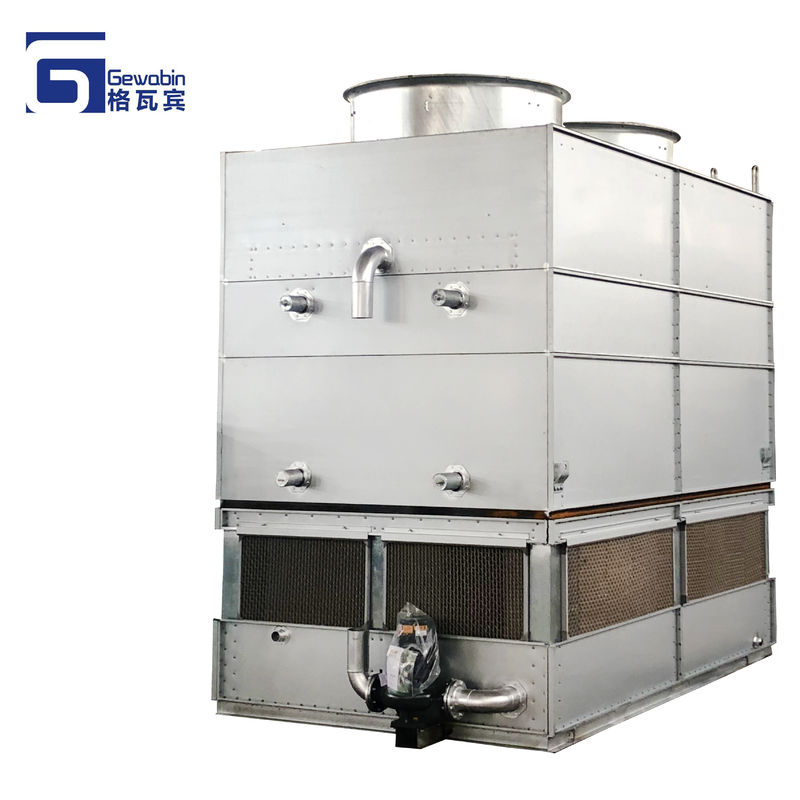

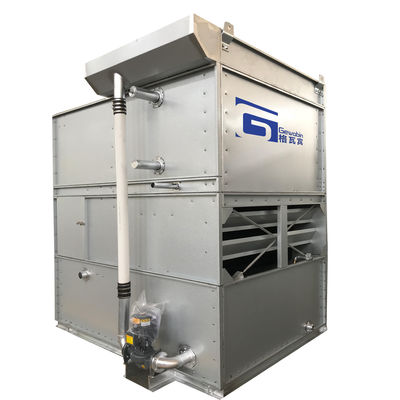

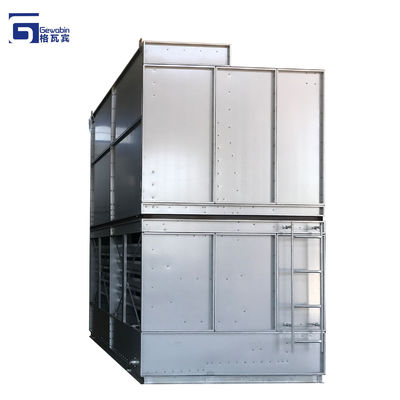

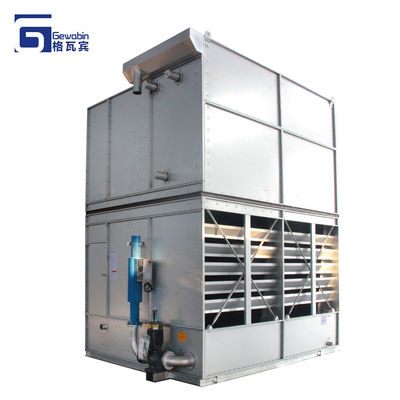

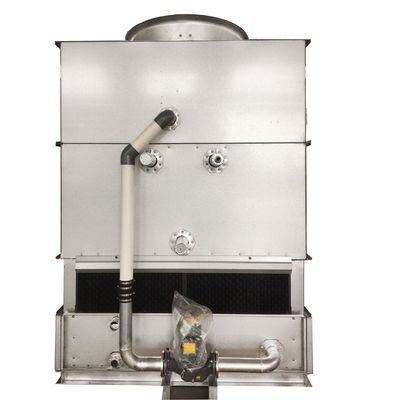

Competitive Price Evaporative Condenser Water Saving Closed Cooling Tower Counter-flow Closed Cooling Tower
جزئیات محصول:
| محل منبع: | جیانگسو ، چین |
| نام تجاری: | RESPECT |
| گواهی: | CE |
پرداخت:
| مقدار حداقل تعداد سفارش: | 1/مجموعه |
|---|---|
| قیمت: | $5,000.00 - $15,000.00/sets |
| جزئیات بسته بندی: | حمل شده توسط کانتینر یا کیس چوبی |
| زمان تحویل: | 10 روز کاری |
| قابلیت ارائه: | 30 مجموعه/مجموعه در هر ماه |
|
اطلاعات تکمیلی |
|||
| صنایع قابل اجرا: | هتل ها، کارخانه تولیدی، مصارف خانگی، کارهای ساختمانی، شرکت تبلیغاتی | نوع خنک کننده: | جریان شمارنده |
|---|---|---|---|
| مواد: | فلز | ولتاژ: | 380V/50Hz |
| ابعاد (L*W*H): | به تقاضای شما بستگی دارد | گارانتی: | 3 سال |
| نکات کلیدی فروش: | پایدار | نام: | برج خنک کننده بسته |
| زمان تولید: | به طور معمول 3 ~ 4 هفته | مواد نازل اسپرت: | غضب |
| برج خنک کننده پر کنید: | به برج خنک کننده خود بستگی دارد | بندر: | بندر شانگهای |
توضیحات محصول
Competitive Price Evaporative Condenser Water Saving Closed Cooling Tower Counter-flow Closed Cooling Tower
Introduction
Evaporative Condenser for water cooling, The possibilities for choosing appropriate heat exchangers are severely limited when there is a particularly high power need and relatively little installation area.
In accordance with established industry quality standards, Gewabin uses the highest quality raw materials and cutting-edge technology in the manufacturing of its evaporative condensers.
| pecifications of Water-cooling Evaporative Condenser | |||
| Heat refection under Normal operating condition | kw | 2050 | |
| Propeller fan | Qty. | set | 2 |
| blowing rate | L/S | 2*16.7 | |
| Power | kg | 2*4.0 | |
| Water circulating pump | Water volume | m3/h | 170 |
| Power | kw | 4.0 | |
| Weight | shipping | kg | 7815 |
| Operating | kg | 11250 | |
| Refrigerant charge | kg | 221 | |
Working principle
Water poured upon a high-temperature gaseous refrigerant in a pipe coil causes heat exchange. During the procedure, the high-temperature gaseous refrigerant becomes liquid.
The heated spray water vapour is removed by the fresh air as it ascends from the bottom to the top of the condenser. The water fender board will stop the vapour water as it runs through pipe coils into the collection basin and then back into the circulation system. The water level regulator can be used to replenish the lost water.
Production Advantage
Water Cooling Evaporative Condensers are commonly used in various industrial and commercial applications to cool down water and remove excess heat generated by processes or equipment. These towers are designed to efficiently transfer heat from the water to the surrounding air through evaporation, ensuring optimal cooling and maintaining the desired temperature.
Water Cooling Evaporative Condensers offer several advantages, including their compact design, ease of installation, and efficient heat transfer capabilities. They are a cost-effective and reliable solution for various applications that require effective cooling and temperature control.
Application Case
For easier discussions, 24 hours on line service available: Yaling is online: skype: tang.yaling
Mob./WhatsApp/Wechat: 8618761578489
Many thanks for your interests, and your inquires are always well attended!
